SA-C-ESS Energy storage system
Parameter Introduction
Cabinet Type Energy Storage System
| Model | Standard Discharge Current | Working Voltage Range | Battery Capacity | Inverter Power | Number Of Battery Packs |
| SA-C-ESS-5 | 50A | 43.2-57.6VDC | 5.12kWh | 5500W | 1 |
| SA-C-ESS-10 | 50A | 43.2-57.6VDC | 10.24kWh | 5500W | 2 |
| SA-C-ESS-15 | 50A | 43.2-57.6VDC | 15.36kWh | 5500W | 3 |
| SA-C-ESS-20 | 50A | 43.2-57.6VDC | 20.48kWh | 5500W | 4 |
| SA-C-ESS-25 | 50A | 43.2-57.6VDC | 25.6kWh | 5500W | 5 |
Cabinet Energy Storage System (Parallel Inverter)
| Model | Standard Discharge Current | Battery Capacity | Inverter power | Number Of Battery Packs | |
| SA-C-ESS-20 | 50A | 20.48kWh | 5.5kWh*2=11kW | 4 | |
| SA-C-ESS-30 | 50A | 30.72kWh | 5.5kWh*3=16.5kW | 6 | |
| SA-C-ESS-40 | 50A | 40.96kWh | 5.5kWh*4=22kW | 8 | |
| SA-C-ESS-50 | 50A | 51.2kWh | 5.5kWh*5=27.5kW | 10 | |
| SA-C-ESS-60 | 50A | 61.44kWh | 5.5kWh*6=33kW | 12 | |
Core Product Advantages
- Adopts high-quality lithium iron phosphate cells with intelligent BMS, long cycle life and superior safety; customizable charge/discharge parameters and flexible battery configuration.
- Communication: RS485/RS232, CAN, Bluetooth & WiFi for remote monitoring; touch LCD for easy operation.

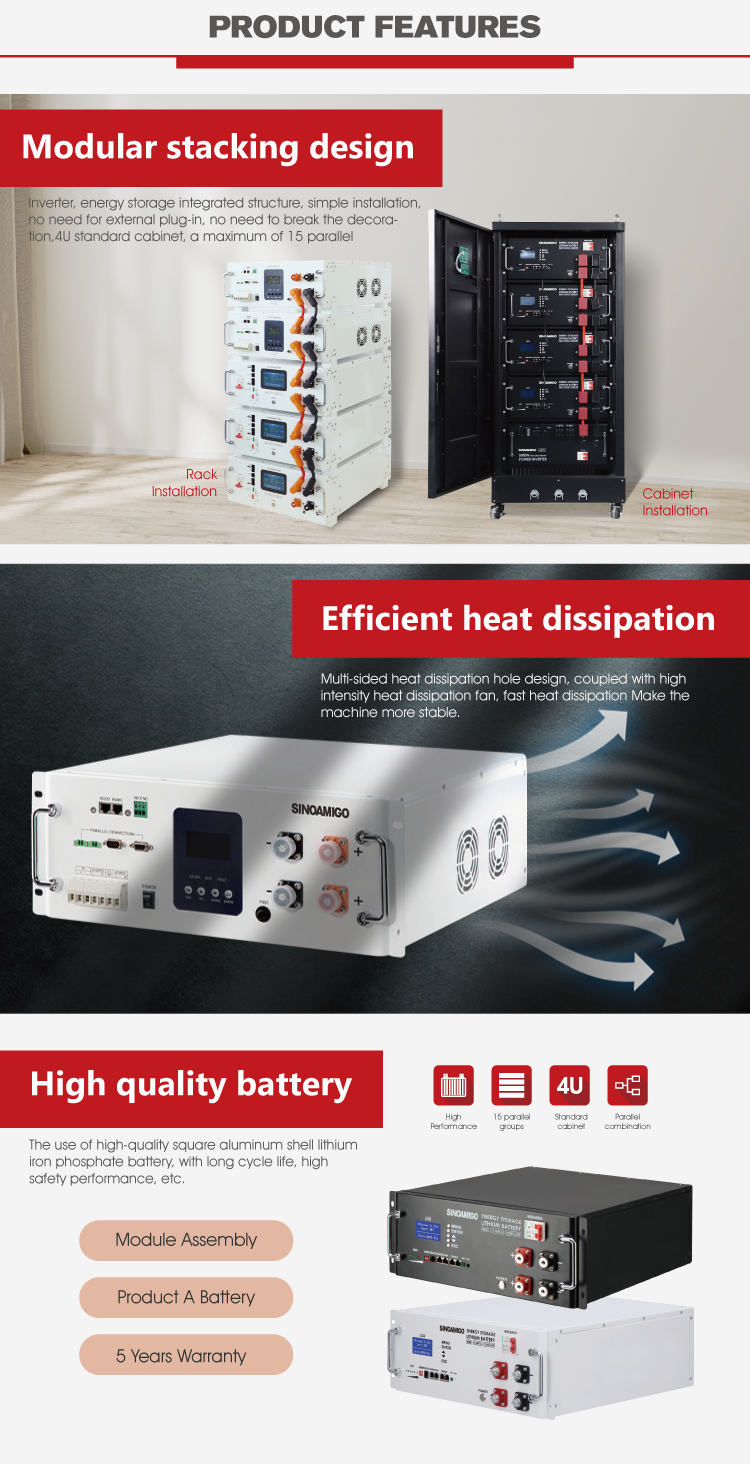

- Compact 4U design for space-saving installation; customizable capacity and technical parameters.

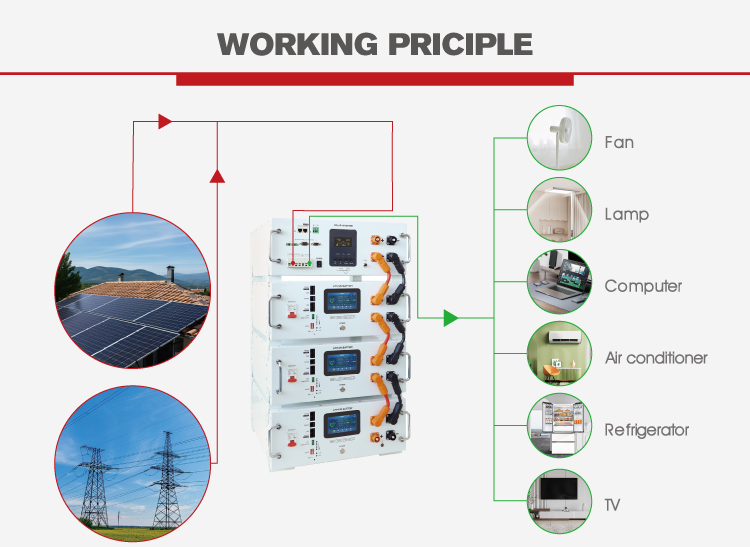

- Solves common pain points including rising electricity cost, unexpected blackouts and bulky conventional storage equipment, enabling self-sufficient clean power supply.
